2PCS Thermal Circuit Breaker 20 Amp Manual Reset Push Button Overload Protector Switch with Waterproof Cover for Generator RV

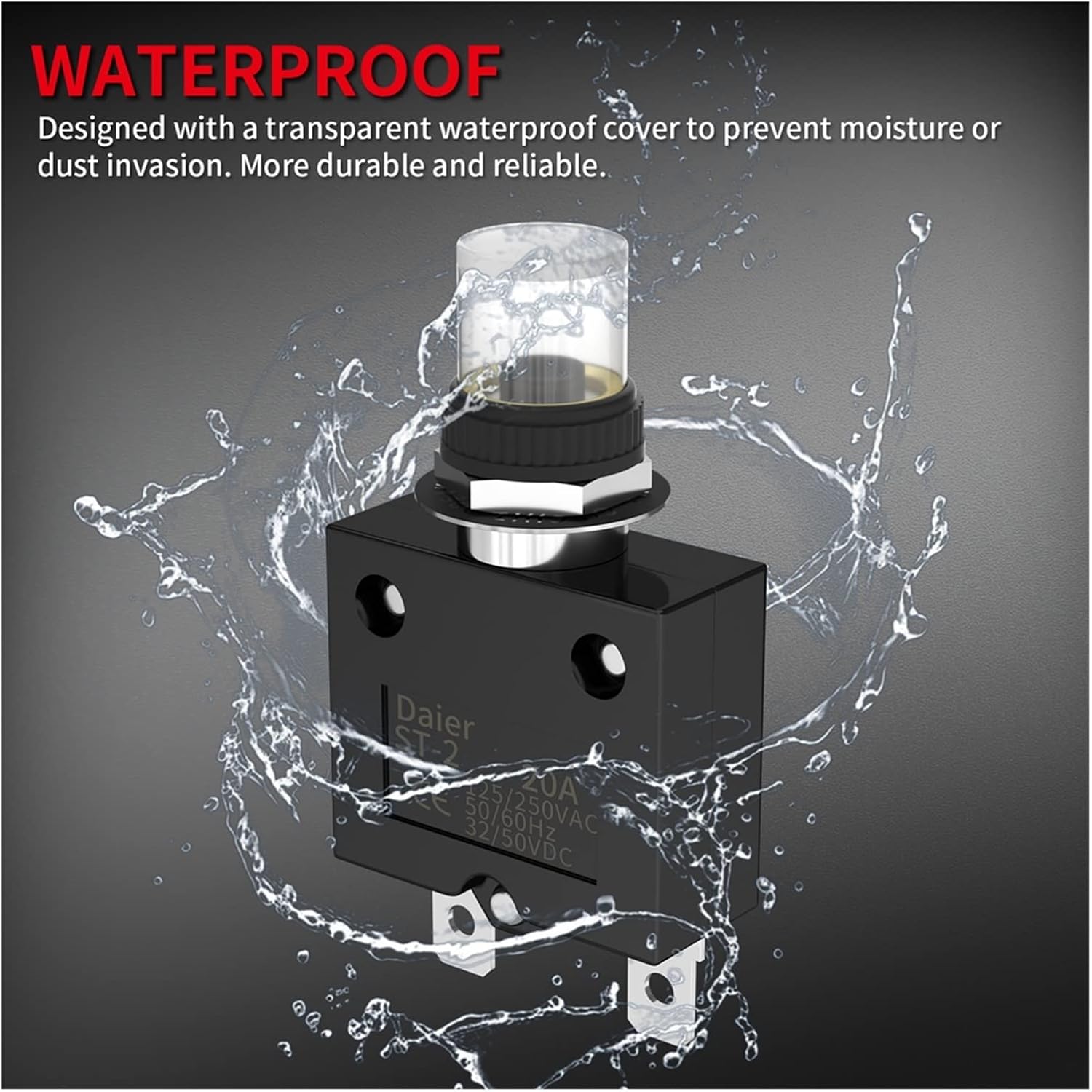

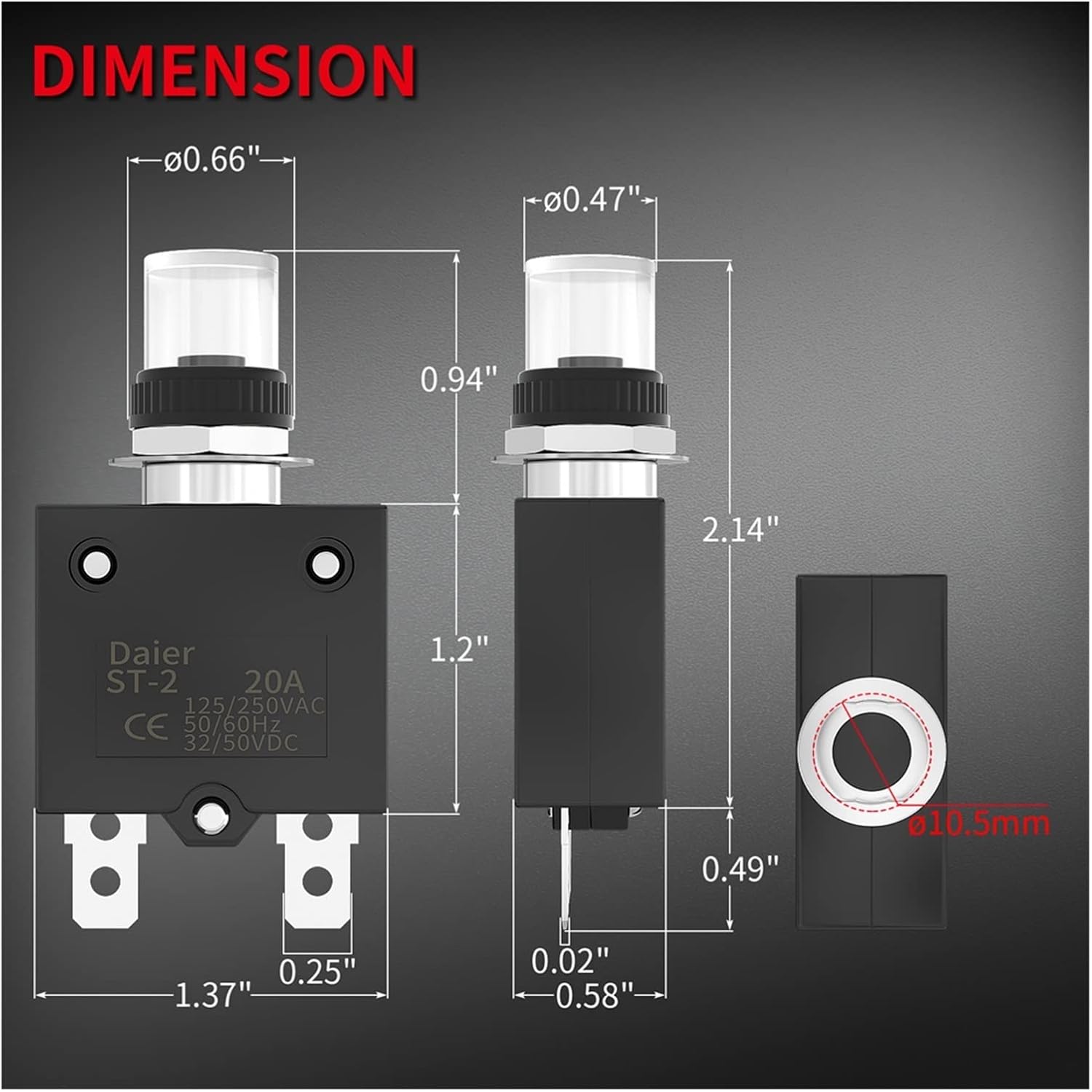

ControllersLimit Switches2PCS Thermal Circuit Breaker 20 Amp Manual Reset Push Button Overload Protector Switch with Waterproof Cover for Generator RVThermal Circuit BreakersThis is a push button type thermal circuit breaker. The button will pop up when the circuit is overload, and you need to push it back to reset it. The circuit breaker is suitable for both AC and DC and it can be used under 12V/32V/50V/110V/125V/250V etc.When the 20 amp breaker operates under 20A, it would not trip in 1 Hour. 30A, Trip within 1 Hour. 40A, Trip between 2 to 60 SecWhat is included:2 x thermal circuit breakers2 x transparent waterproof covers4 x spade connectors with housingRating20 Amp 125V/250V AC or 12V/50V DCTerminals2 pinsMounting Hole Size0.42" (10.5mm)MaterialsBakelite Housing and Metal ShaftProtectionWaterproofPush Button Circuit BreakerMarine Circuit Breakers rated at 20 Amp. Operating voltage could be 12V DC / 250V AC. The button will pop up when the circuit is overload, push to reset it.Well-Constructed20 amp circuit breaker is sturdy enough for long term use by being made of burr-free bakelite housing and metal shaft.WaterproofGenerator circuit breakers are designed with transparent waterproof covers to prevent moisture or dust invasion. More durable and reliable.
