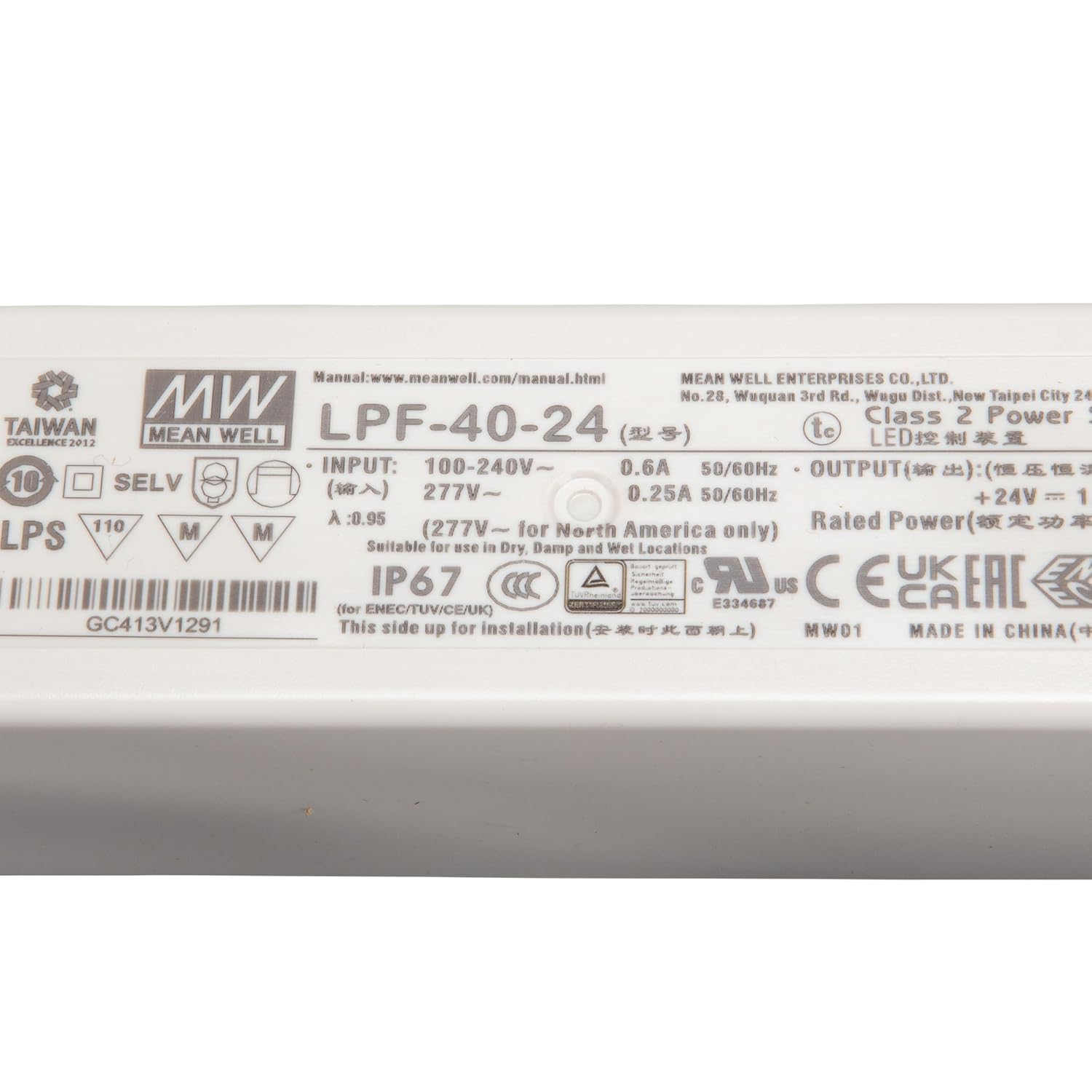

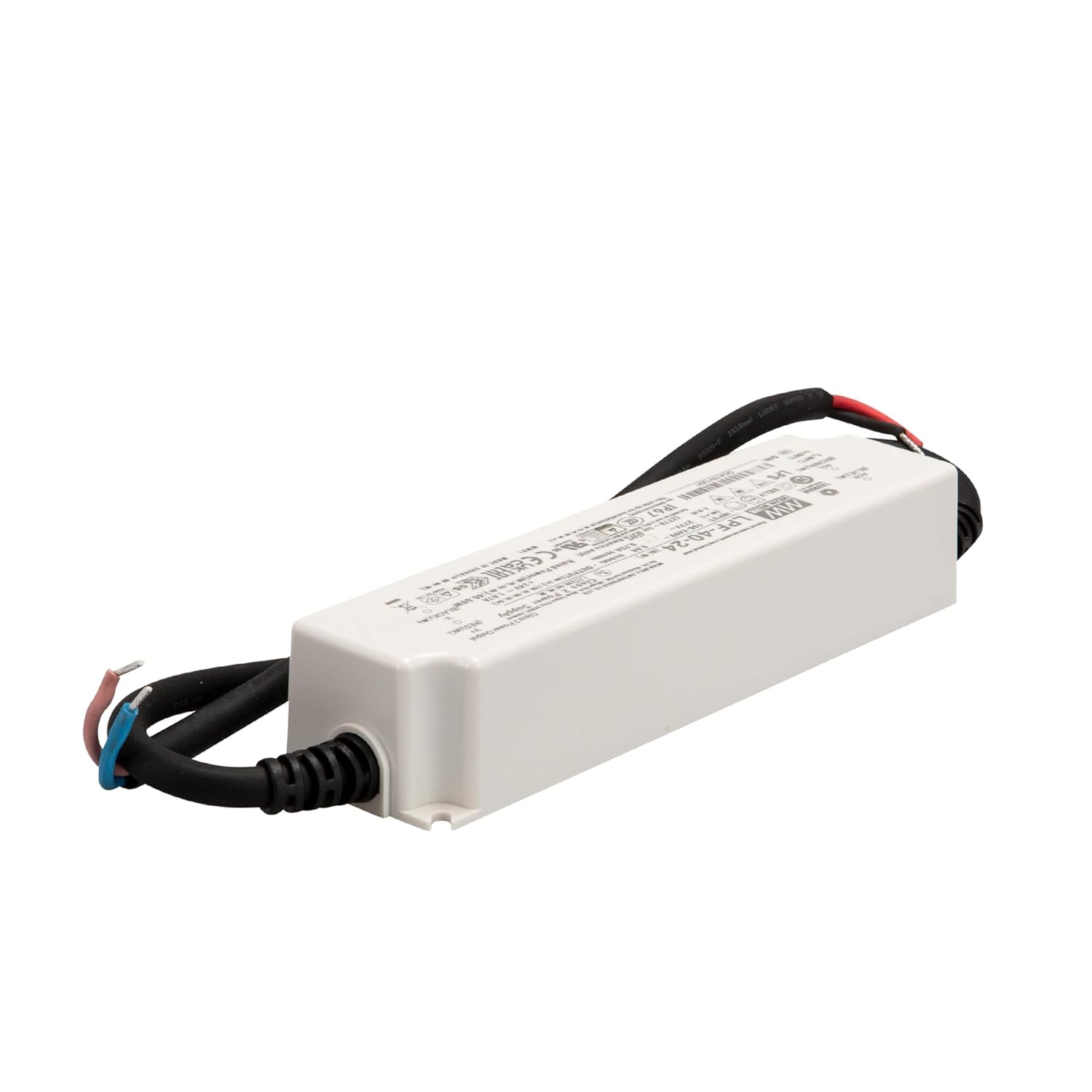

Mean Well LPF-40-24 24v Power Supply DIY

Thanks to the integrated 3-in-1 brightness control, this power supply offers great flexibility for designing educational bodies. Conforms to IP67 protection and also works with extremely high energy efficiency. Output 24 V/DC/1.67 ATensione fixed/costant switching current 40 W potency acircuito PFC incorporatotensione dingresso 90 – 305 V/AC; 127 – 43111. V/DCDI mmerabileip67 for applications in internal environments or esterniprotezione overload due to current limitation, automatic recovery · protection against short circuit, overcharge and short circuit · PFC circuit integrated · IP67, for applications in internal or external environments · for LED and lighting · uL1311 0 Class 2 · Dimmer (outdoor voltage 1... 10 V DC, PWM, Potentiometer) â ·, EN61000 – 3-2 Class C, eN55015, EN61347 – 1, EN61347 – 2-13. Height: 32.00 mm · Dri frequencies LED worm: no. Dimmer, PFC circuit, overload protection. Protection class: II. Connection: cable with open escape. Output current max. 1.67 A · Power range: 40 W (max) · Width: 42.50 mm · Length - Depth: 162.50 mm · Model: Fixed voltage / constant current · Model (LED driver): constant voltage, constant current · Number of outputs: 1 x · Number of inputs: 1 x · Weight: 450 00 g · Power (max. ): 40 W. Operating voltage: 115 V/AC, 230 V/AC. Input voltage (max. ): 305 V/AC · Input voltage (min): 90 V/AC · Output voltage (max. ): 24 V/DC. LED driver type (category): LED driver transformer. Protection class: IP67. Current output (min): 14.4 V/DC.

• Output 24 V DC / 1.67 A · Fixed voltage/constant current · 40 W power · Integrated PFC circuits · Input voltage 90 - 305 V/AC, 127 - 431 V/DC · Dimmable · Resistant to bad environmental conditions, indoor and outdoor use
• Output in mixed mode (constant voltage to maximum intensity, then constant current) (C
• V
• c cup
